Pineapple MK7

Pineapple Mark VII (MK7)

Lets take a look under the hood:

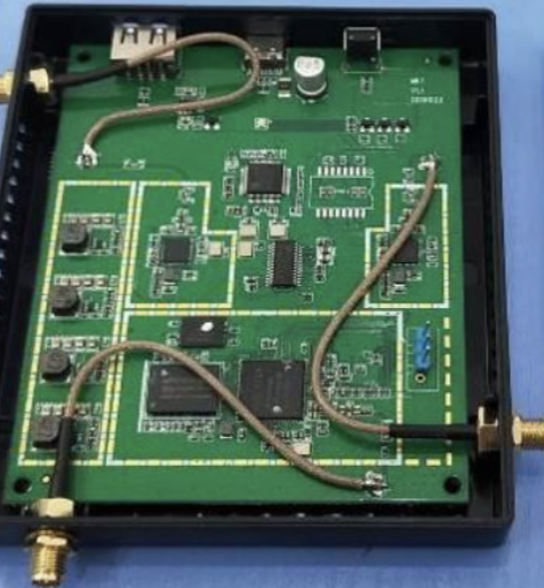

Pineapple 7 Naked

Hardware

  • 3x Radios - 802.11b/g/n
  • Mediatek processor - 580MHz MIPS 64 KB I-Cache and 32 KB D-Cache
  • 256 MB RAM
  • MT7688
  • MT7601
  • USB 2.0
  • U-Boot bootloader
  • 2 GB EMMC

Specifications

  • Dimensions: 107 x 93 x 21 mm
  • Frequency range: 2.412 ~ 2.4835 GHz
  • Power: 10W (USB 5V 2A

Pricing

  • Wifi Pineapple Mk VII (basic) $99.99 USD
  • Wifi Pineapple Mk VII (tactical) $119.99 USD
  • LIMITED EDITION Kismet Case mod $49.99 USD (no pineapple h/w included)
  • Kismet LED $15.99 USD
  • The much needed Mk VII 80211.AC module, an extra $39.99 USD
  • Enterprise $349.99 USD

Manual

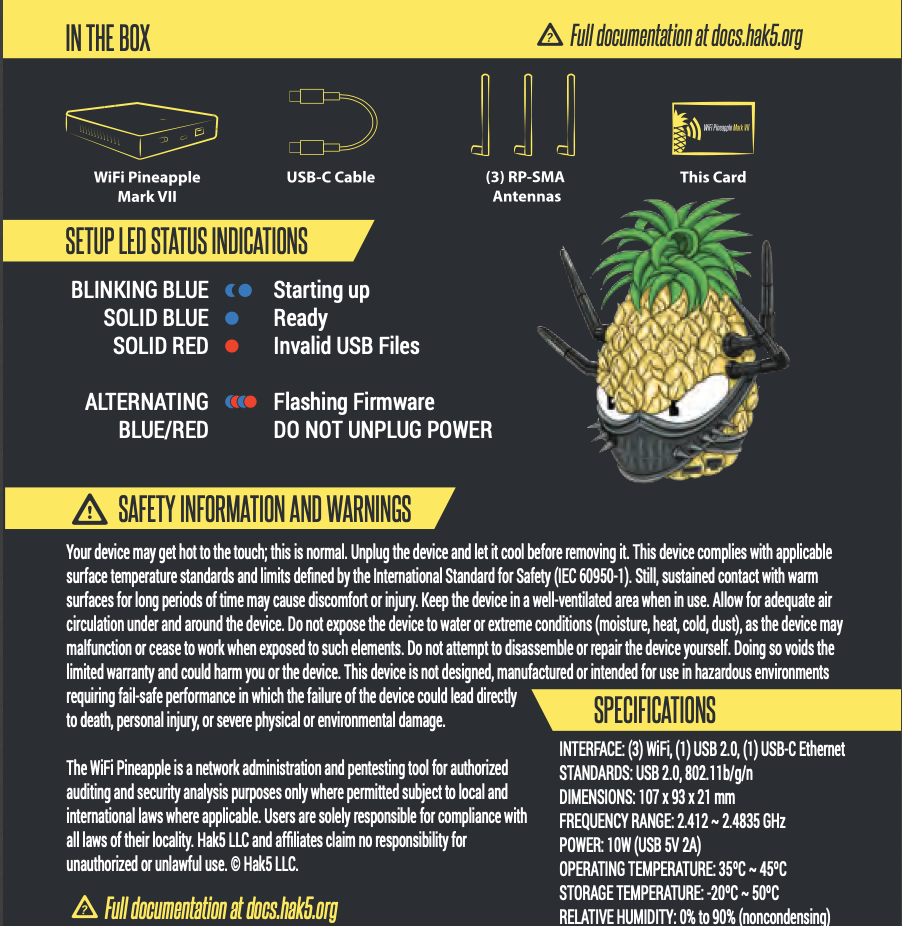

Heres a screenshot of the manual from the box:

Pineapple MK7 Manual

Update (2020-09-08)

We recommend that you may choose to save your money, as after the event Hak5 will release a pro version with the following uncomfirmed stats:

  • Dual Band 2.4/5 GHz 802.11 a/b/g/n/ac
  • Quad Core ARM Network SoC
  • 512MB RAM
  • Four Dedicated Role-based MIMO Radios
  • 4 GB EMMC

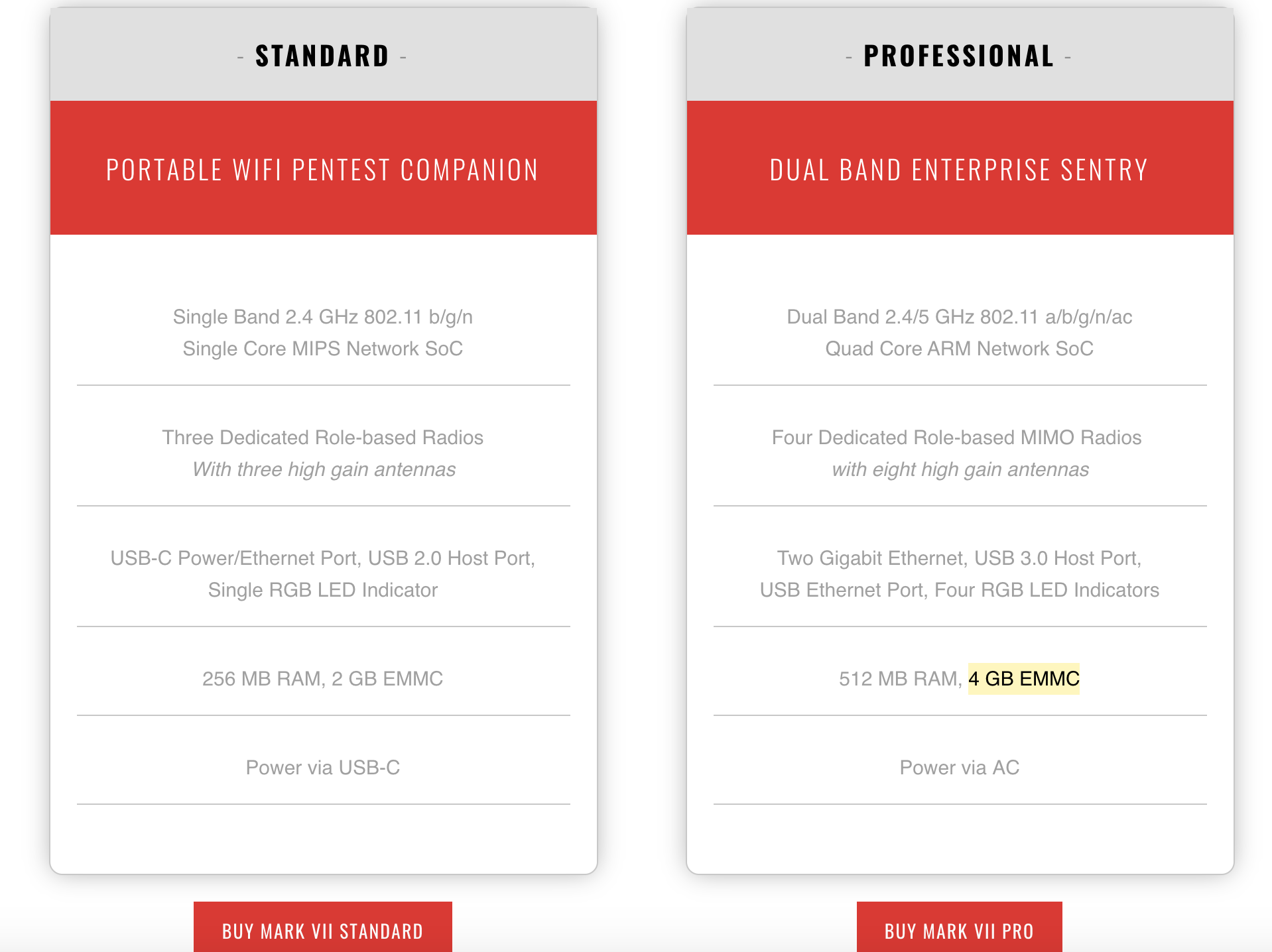

If you want to compare the unreleased pro/enterprise against the standard version, Hak5 used to have this comparision image hosted on their web store. But it has since been removed? pro version

In our opinion think this update is more of what we expect, but will the hardware & software deliver customer satisfaction?

Conclusion

For this iteration we were really hoping for dual radios that could cope with both 2.4 & 5 GHz. Instead we find ourselves limited by default to the 802.11n range. Those willing to spend an extra $40 USD, can get the AC module; However, we are unsure about the operational performance or compliance of the add-on at this time as it is not currently available to test.

This will hopefully be a good upgrade for those that skipped recent models (V, VI nano & tetra), but looking at the forums, these models look almost unsupported and are suffering with several usability issues. We guess the more clever hacker(s) could port the drivers of an existing and supported 5GHz dongle to the latest Pineapple OpenWRT OS making the system more complete to modern standards.

Our opinion is: that at the end of the day, it’s your wallet and money, so if you can afford to update your WiFi pentesting kit, then it is upto you.

If you do want to buy one, please visit:

In comparision if you have a restricted budget: you could buy a USB dongle from your local supplier / internet store for around 10% of the above prices and learn to use the freely available Kali Linux (or any other Linux distribution).

Disclaimer

Images and specifications were sourced using OSINT from Kismet, Hak5 and FCCID.
