Quick and simple post on playing around with Cloudwatch on AWS EC2.

Install an IAM role to govern the transfer of the logs

Then go to the EC2 dashboard https://console.aws.amazon.com/iam

Choose ‘Create new IAM role’, then

Create Role

EC2 Instance, ignore all other settings, click next

Create policy

Paste in the following JSON policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "logs:CreateLogGroup",
        "logs:CreateLogStream",
        "logs:PutLogEvents",
        "logs:DescribeLogStreams"
    ],
      "Resource": [
        "arn:aws:logs:*:*:*"
    ]
  }
 ]
}

Finally, name the role for ease of identification later.

Install AWSLogs

SSH into your EC2 instance and issue the following commands:

sudo yum update -y
sudo yum install -y awslogs

The latest version of Redhat uses systemctl as opposed to legacy init.d services:

systemctl start awslogsd
sudo systemctl enable awslogsd.service

on older versions of the ami the traditional commands are:

/etc/init.d/awslogs start
chkconfig -add awslogs
chkconfig awslogs on

Configuring Logging

By default only /var/log/messages is logged, but adding extra logs is dead easy, simply edit the following file /etc/awslogs/awslogs.conf:

[/var/log/messages]
datetime_format = %b %d %H:%M:%S
file = /var/log/messages
buffer_duration = 5000
log_stream_name = {instance_id}
initial_position = start_of_file
log_group_name = /var/log/messages
[/var/log/secure]
datetime_format = %b %d %H:%M:%S
file = /var/log/secure
buffer_duration = 5000
log_stream_name = {instance_id}
initial_position = start_of_file
log_group_name = ssh

Also the default location for awslogs is us-east-1, you may want to change this? Edit the file /etc/awslogs/awscli.conf:

[plugins]
cwlogs = cwlogs
[default]
region = us-east-1
Cloudwatch

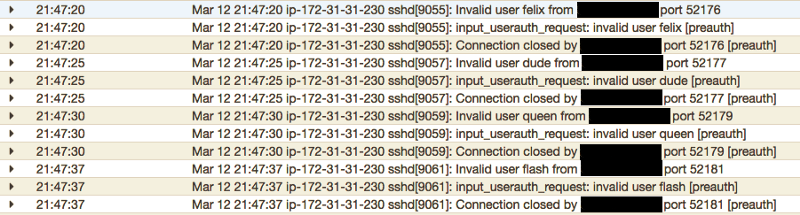

Hopefully, you should then be collecting logs from the EC2 instance(s) that have the role applied.

Then the fun begins, playing with filter, metrics, alarms, and Lambda rules to shift the data into an elastic search platform.
